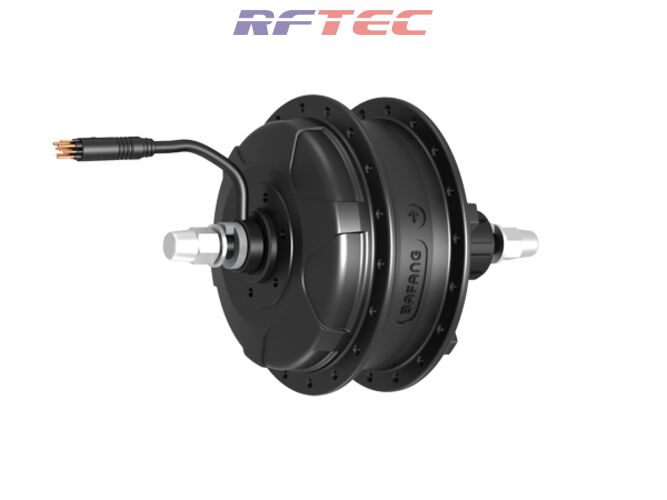

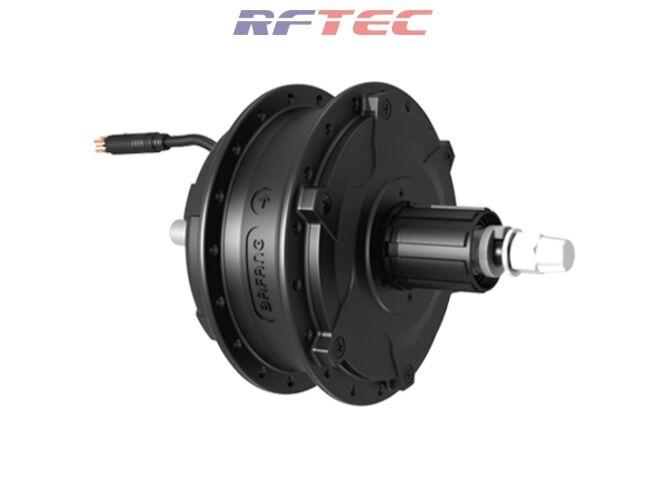

Dieser Heckantriebsmotor mit einer Nennleistung von 250 W, einem Untersetzungsverhältnis von 1: 11 und einem maximalen Drehmoment von 30 Nm bietet ideale Kraft für Fahrzeuge. Stark und effizient verbessert dieser Motor den Fahrkomfort erheblich und eignet sich für Tourenräder, Pendler und Mountainbikes.
Dieser Motor ist für das neue System mit Streckkranz.
Specifications
Core Data
|
Position |
Rear Motor |
|
Wheel Diameter (Inch) |
27,5 |
|
Construction |
Gear drive |
|
Rated Voltage (DCV) |
36/43 |
|
n0 (Rpm) |
350 ; 240 |
|
Rated Power (W) |
250 |
|
nT(Rpm) |
318 ; 205 |
|
Max Torque |
30 N.m |
|
Efficiency (%) |
= 80 |
|
Color |
Black |
|
Weight (kg) |
= 3 |
|
Noise Grade (dB) |
< 50 |
|
Operating Temperature |
-20 - 45? |
Mounting Parameters
|
Brake |
Disc Brake |
|
Installation Widths (mm / OLD) |
138 |
|
Max. Housing Diameter (mm) |
135 |
|
Cabling Route |
Shaft Side, Left |
|
Cable Length(mm), Connection Type |
250 G9.1 |
|
Gearshift |
Freewheel(6S/7S/8S/9S) |
|
Spoke Specification |
36H*13G |
Further Specifications
|
Speed Detection Signal (Pulses/Cycle) |
6 |
|
Reduction Ratio |
1:11 |
|
Magnet Poles (2P) |
16 |
Tests & Certifications
|
IP |
IP 65 |
|
Certifications |
ROHS / CE |
|
Salt Spary Test Standard(h) |
96 |

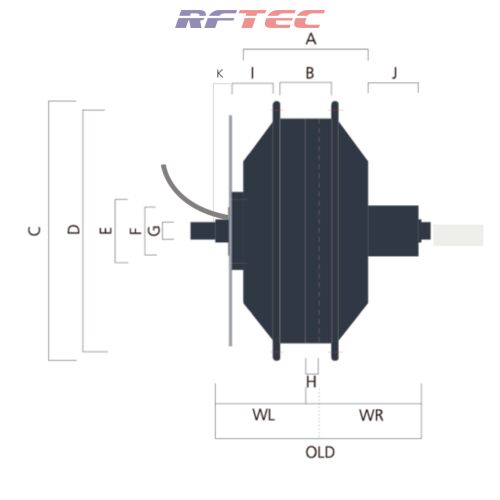

Dimensions
|
Dimension A |
82 mm |
|
Dimension B |
35 mm |
|
Dimension C |
F135mm |
|
Dimension D |
F123mm |
|
Dimension E |
F44mm |
|
Dimension F |
F33mm |
|
Dimension G |
2–M12 x 1.25–6g |
|
Dimension H |
7mm |
|
Dimension I |
24.5mm |
|
Dimension J |
39.5mm |
|
Dimension K |
15.3mm |
|
Dimension WL |
62mm |
|
Dimension WR |
76 mm |
|
Dimension OLD |
138 mm |

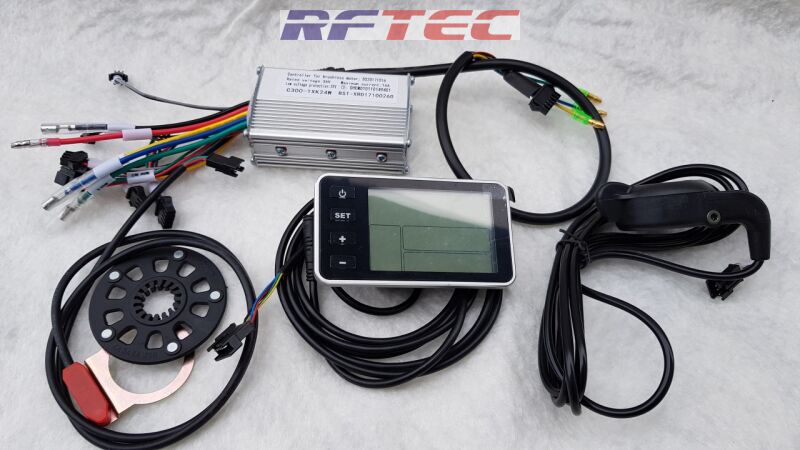

Lieferumfang:

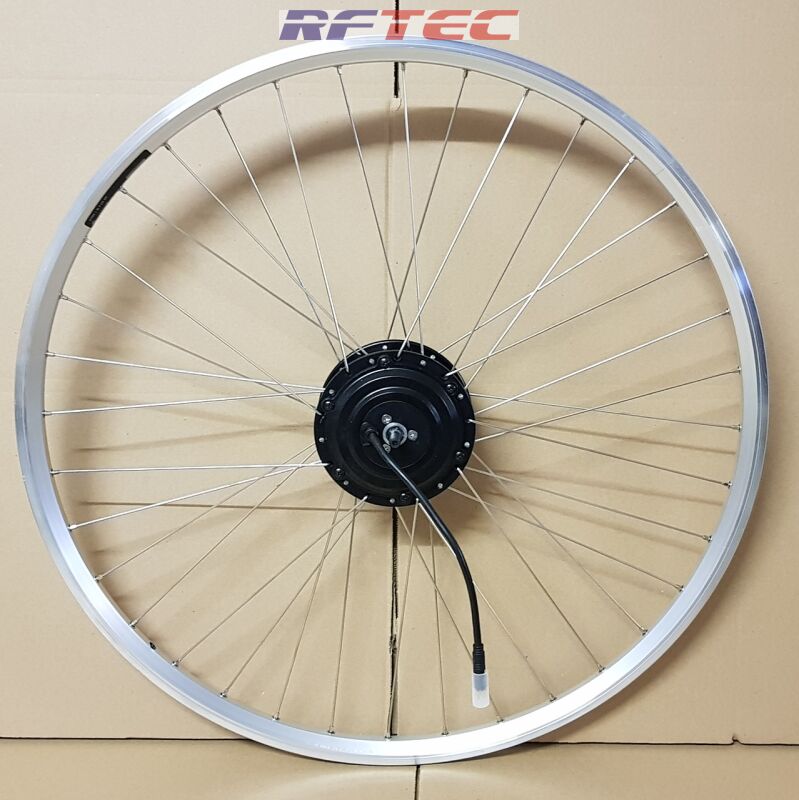

1 x Bafang Hinterradmotor , schwarz, 27,5"

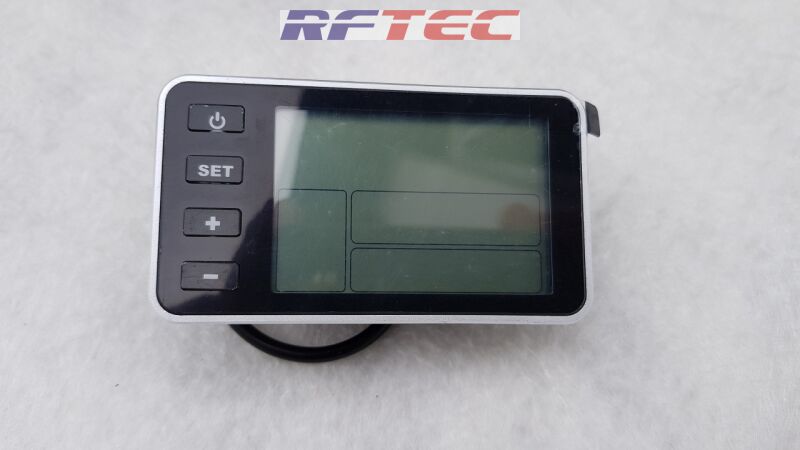

1 x LCD Display mit USB Anschluss

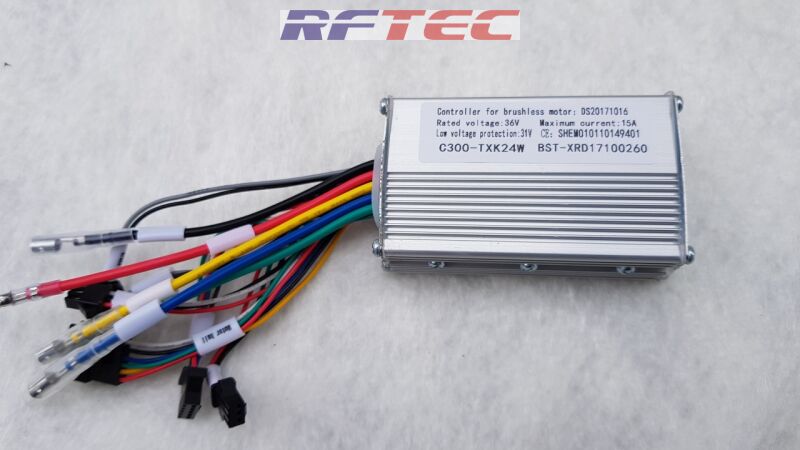

1 x 15A Kontroller

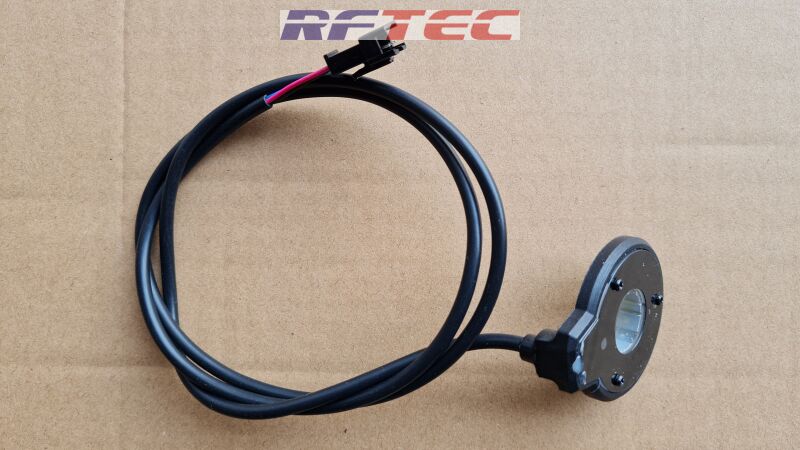

1 x Speed Sensor
